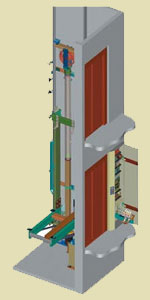

Arion Hydro MRL is a pioneering concept, combining ideally the well-known advantages of a quality hydraulic lift, with the elimination of the requirement for a machine room.

The advantages of Arion :

• 4 weeks delivery
• Type Examination Certificate according to Directive 95/16 EC
• Travel up to 20m / 8 stops for 630 Kg, 25m / 10 stops for 1000 Kg
• Controller installed at the lowest landing level
• Optional use of a soft starter
• Environment-friendly (compatible with certified biodegradable hydraulic oil)
• HR version at 1 m/sec available as well in shaft sizes of 1,65 m wide x 1,80 m deep with 900 mm wide door or 1,60 m wide x 1,80 m deep with 800 mm wide door

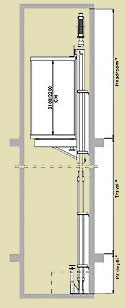

• Reduced Headroom at 3400 mm
• Only 1100 mm min. pit depth for 630 Kg, 1400 mm for 1000 Kg
• With minimized shaft dimensions suitable for new construction and modernization
• Available with various cabin sizes and panoramic cabins
• Reduced installation time
• A solution of superior value

Hydraulic Elevation System:

• Manufactured with high quality materials that secure long life span
• Installation and service friendly parts
• High levelling and stopping accuracy according to pr EN 81.70 that provides ride quality
• Minimum maintenance requirements, low maintenance costs and readily available spare pars
• Compatible also with biodegradable and non flammable oil

Controller- Electronics:

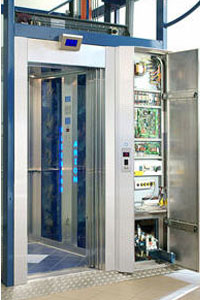

• The controller is placed at the lowest stop, next to the
  landing door and outside the shaft.
• Easiest access to the controller
• State-of-the-art electronics
• Pre-assembled electrical installation (fully pre-wired)
• Available with standard Automatic Emergency Evacuation

Valve block - Power unit:

• The power unit is placed in the shaft

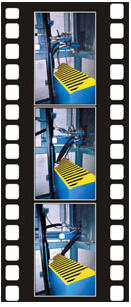

• Through the "Moving Valve Block" concept, access to
  the valve block is as easy as it gets!
